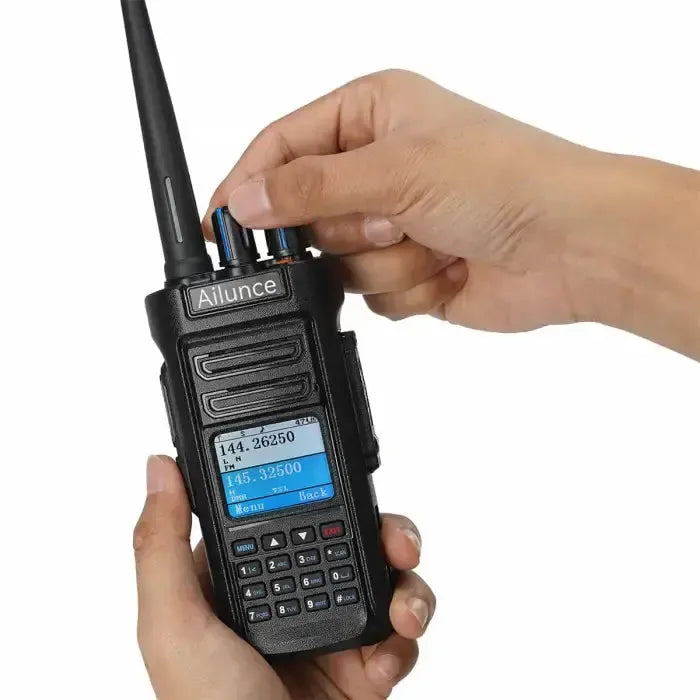

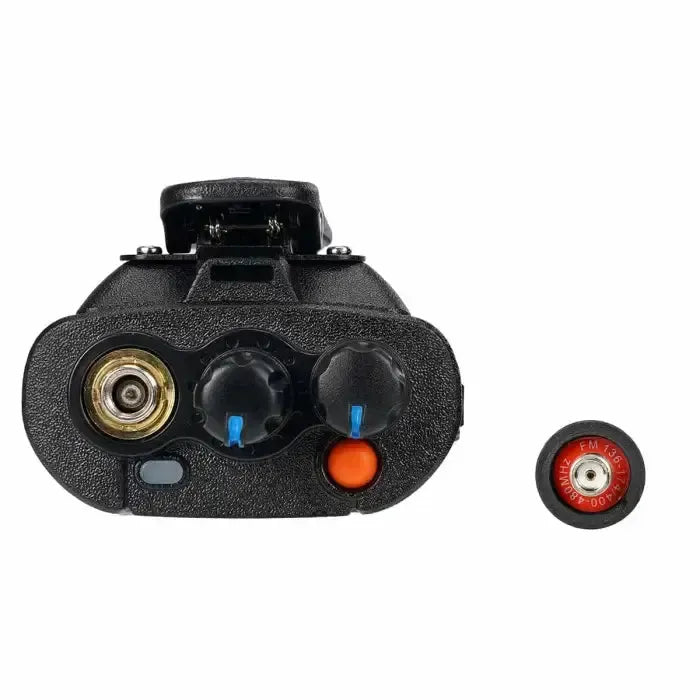

Retevis Ailunce HD2 Waterproof Dual Band GPS DMR Bluetooth Amateur Ham Radio
Popcorn Machine

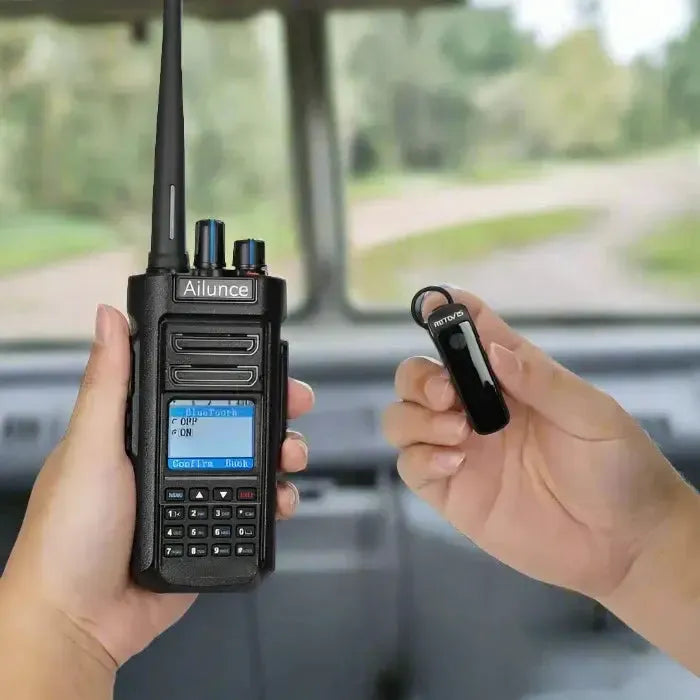

Retevis Ailunce HD2 is the ultimate ham radio, with upgraded features and expanded capabilities compared to the HD1 model. This waterproof, IP67 DMR radio offers a range of fun and innovative functions, including Bluetooth compatibility for wireless earpieces, a SUB-PTT function, and an impressive capacity for contacts. Get ready for endless possibilities in any environment with the Ailunce HD2!
FCC ID: 2A3OOHD2
Features:
- Dual Band DMR / FM Radio
- Analog and Digital Combined
- Backwards Compatible With Legacy Analog FM Repeaters
- Compatible with Motorola Tier Ⅰ & Ⅱ
- 500000 Contacts + 1000 Priority Contacts
- IP67 Waterproof
- Scan: Time / Search / Carrier
- Encryption Function
- Lone Worker
- Single / Group / All call
- Remote kill / stun / activate

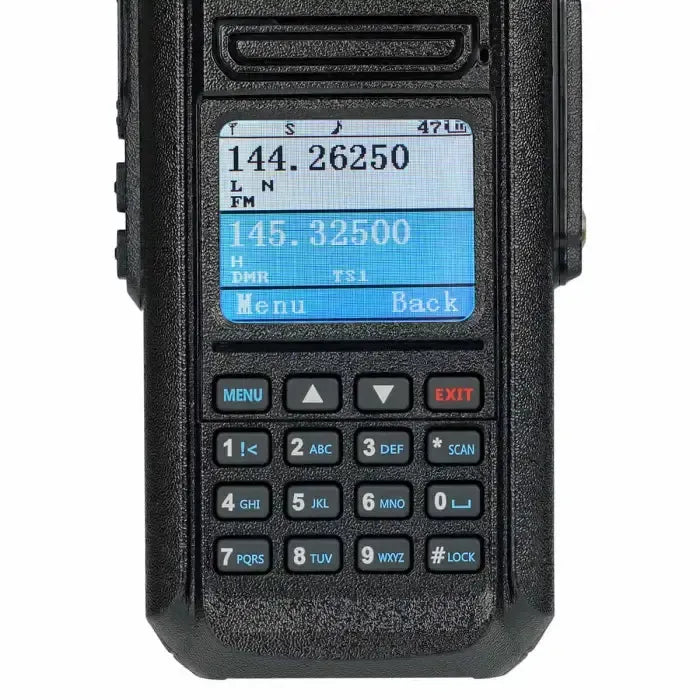

- 1.77 inch Color LCD Display
- 10 level brightness adjustable
- Contacts and colour code Promiscuous Function
- Standard CTCSS/DCS
- Analog Monitor
- 3 kinds of Keyboard Lock: Keyboard, Keyboard+CH Knob, PTT+CH+Keyboard
- LED Indicator
- Password Lock
- Battery Save
- Voice Annunciation
- 1000/1450/1750/2100Hz EU Repeater tone
- 32 ID Setting
- Night Mode selectable
- Emergency Alarm function

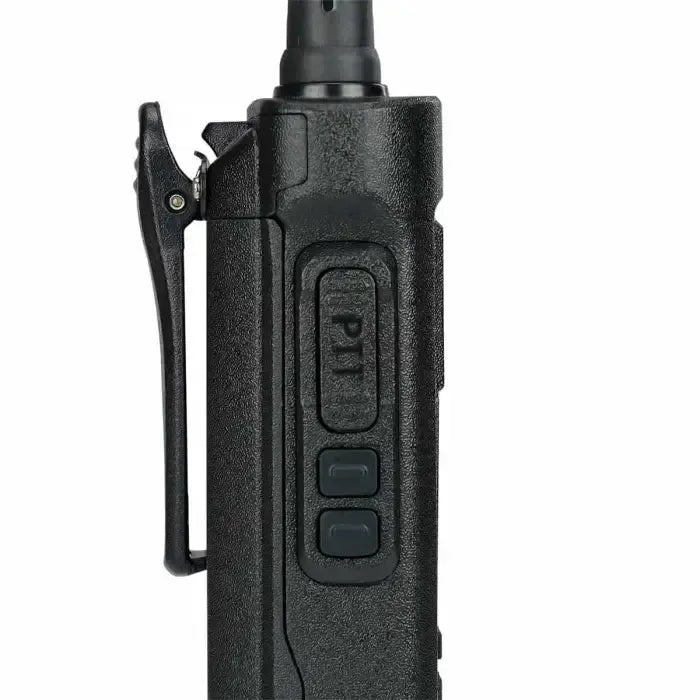

- Dual PTT
Spec
|
General |
Frequency Range |
VHF: 144-148 Mhz UHF: 430-450 Mhz |
|
|
Channel Numbers |
3000 |
|
|
Channel Space |
25 kHz / 12.5kHz |
|
|
Input Voltage |
Max 8.4V---Max 540mA |
|
|
Battery Capacity |
3200mAh |
|
|
Battery Charging Input |
5V 1A |
|
|
Frequency Stability |
±1.0ppm |
|
|
Operation Temperature |
-10℃ to +40℃； |
|
|
Antenna Impedance |
50Ω |
|
Transmit |
Transmit Frequency |
144-148Mhz 430-450Mhz |
|
|
RF TX Power |
High / Middle / Low / Ultra low power |
|
|
Transmit current |
Analog≤1.6A Digital≤0.9A |
|
|
Modulation Mode |
12.5KHz 11K0F3E (Analog) 12.5KHz(data only): 7K60FXD |
|
|
Modulation distortion |
＜5% |
|
|
Vocoder |
AMBE+2TM |
|
|
Adjacent channel power |
60dBm 12.5KHz |
|
|
Audio Response |
+1~-3dB |
|
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
|
Modulation distortion |
＜5% |
|
Receive |
Analog Sensibility |
0.35uV/-116dBm(20dB SINDA) |
|
|
Digital Sensibility |
0.30uV/-117dBm(BER 5%) |
|
|
Adjacent Channel Selectivity |
TIA603C:65dB ETSI: 60dB |
|
|
Spurious Response |
TIA603C: 75dB ETSI:70dB |
|
|
Audio Response |
+1~-3dB |
|
|
Rated Audio Distortion |
≤3% (Type) |
|
|
Audio Power |
≥500mW |
What’s in the Box
HD2 Radio

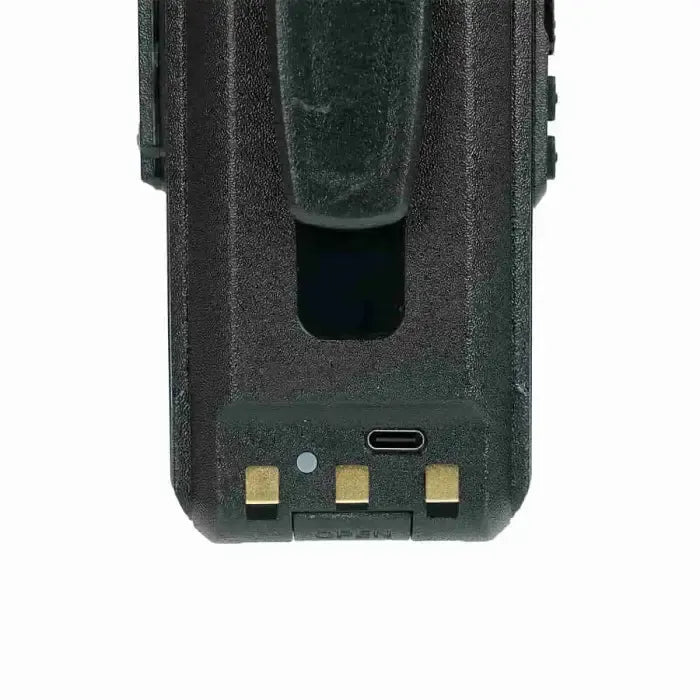

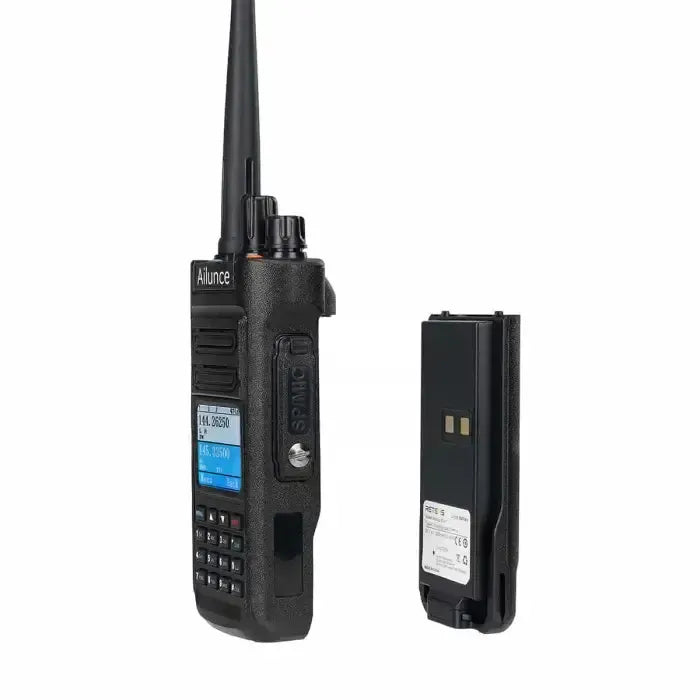

Type-C Charge Battery
USB Type-C Charging Cable
Type-C Desktop Charger
Antenna
User’s manual
Belt clip
Sling
Bluetooth Earpiece
Important Notice:
DMR Radios require advanced Windows computer knowledge to program. Fleetwood Digital has a very basic tutorial HERE to help with programming. We do not have the resources to assist any further.
